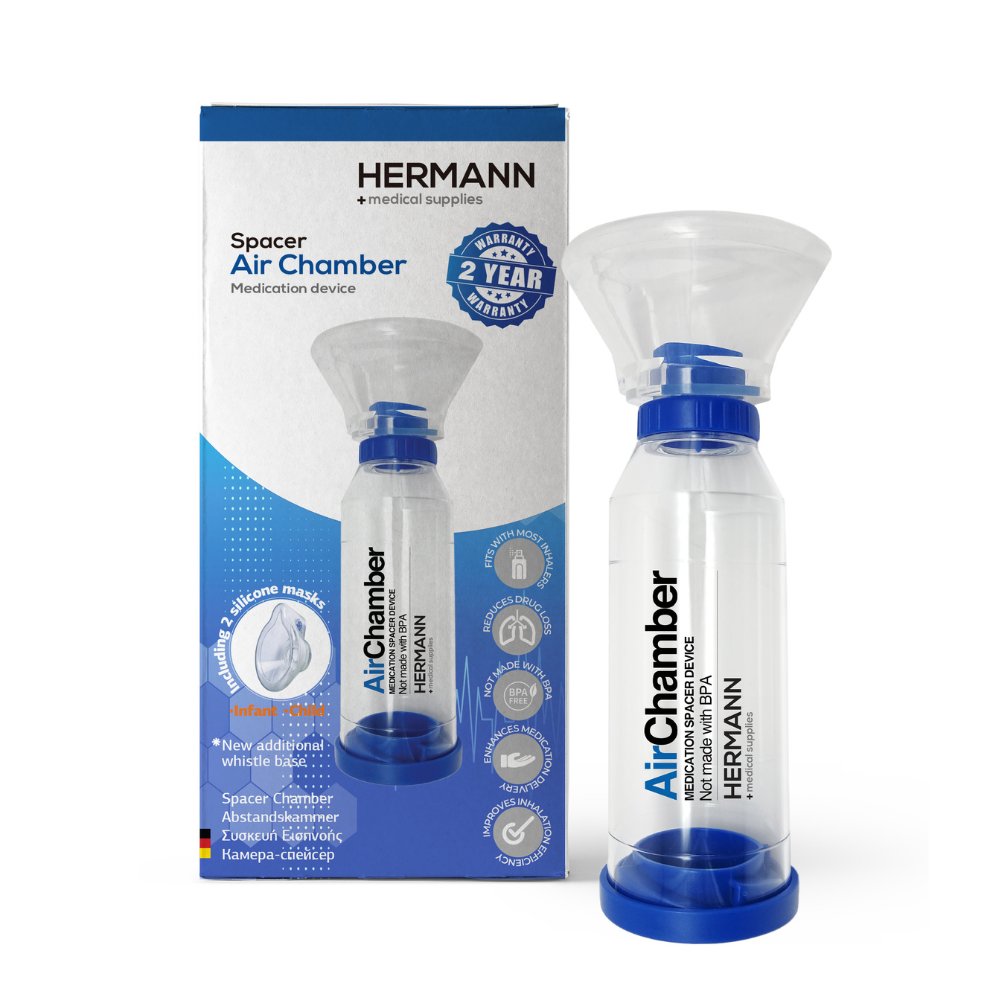

Hermann Spacer Air Chamber S10102

Inhalation Chamber (Spacer)

The Hermann Spacer Air Chamber S10102 is a medical device designed for optimal delivery of inhaled medication and increased inhalation efficiency. Acting as an intermediate chamber, it drastically reduces medication waste and eliminates the need for coordination between device actuation and inhalation.

It is suitable for use by people of all ages and can be used with any MDI aerosol prescribed by a physician.

Key Features

• Complete Kit: Includes two silicone masks (infant and child), offering flexibility and adaptability.
• Flow Control: Features a whistle base that alerts the user when inhaling correctly.
• Compatibility: Fits most Metered Dose Inhalers (MDI) on the market.
• Ergonomics: Lightweight, portable, and easy to use.
• Hygiene: Fully disassemblable and washable design to ensure hygiene.
• Safety: It is BPA-free, ensuring safe use.

Technical Specifications

• Capacity: 220ml
• Warranty: 2 Years

Detailed Instructions for Use

1. Preparation: Remove the mouthpiece cap from the MDI and shake it vigorously. Insert the MDI into the base of the chamber. > Note: If the MDI has a large mouthpiece, insert one side first and gently stretch the base to fit.
2. Placement: Sit in an upright and relaxed position. Place lips firmly around the mouthpiece or apply the mask tightly to the face to ensure an air-tight seal.
3. Breathing Preparation: Exhale gently into the chamber.
4. Administration: Holding the chamber horizontally, press the inhaler canister once firmly to release the dose.
5. Inhalation (Choose method):
   Method A: Breathe normally in and out for 3 or 4 breaths (tidal breathing) through the chamber.
   Method B: Inhale slowly and deeply, hold your breath for about 5 seconds, and then exhale gently after removing the chamber.
6. Repetition & Completion: If a second dose is required, wait a moment and repeat the process from Step 4. Finally, rinse your mouth.

> Important: Before the first use, the device must be cleaned according to the cleaning instructions. The device is intended for Single Patient Use.
